TSU112, TSU111 - 5V CMOS operational amplifier

STMicroelectronics

📥 Download Datasheet

TSU112 Datasheet Preview — This datasheet PDF includes multiple part numbers: TSU112, TSU111. Please refer to the document for exact specifications by model.

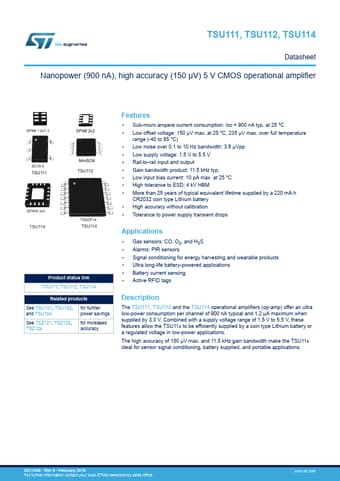

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TSU112, TSU111
Manufacturer	STMicroelectronics ↗
File Size	1.64 MB
Description	5V CMOS operational amplifier
Datasheet	TSU111-STMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: TSU112, TSU111. Please refer to the document for exact specifications by model.

TSU112 Product details

Features

Sub-micro ampere current consumption: Icc = 900 nA typ. at 25 °C.
Low offset voltage: 150 µV max. at 25 °C, 235 µV max. over full temperature range (-40 to 85 °C).
Low noise over 0.1 to 10 Hz bandwidth: 3.6 µVpp.
Low supply voltage: 1.5 V to 5.5 V.
Rail-to-rail input and output.
Gain bandwidth product: 11.5 kHz typ.
Low input bias current: 10 pA max. at 25 °C.
High tolerance to ESD: 4 kV HBM.
More than 25 years of.
