VND7N04-1

FULLY AUTOPROTECTED POWER MOSFET

VND7N04-1 Features

* Type VND7N04 VND7N04-1 VNK7N04FM Vclamp 42 V 42 V 42 V RDS(on) 0.14 Ω 0.14 Ω 0.14 Ω Ilim 7A 7A 7A s Linear current limitation s Thermal shut down s Short circuit protection s Integrated clamp s Low current drawn from input pin s Diagnostic feedback through input pin s ESD protection s Direct ac

VND7N04-1 General Description

The VND7N04, VND7N04-1 and VNK7N04FM are monolithic devices made using STMicroeletronics VIPower M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limitation and overvoltage clamp protect the chip in harsh envir.

VND7N04-1 Datasheet (566.01 KB)

Preview of VND7N04-1 PDF

Datasheet Details

Part number:

VND7N04-1

Manufacturer:

STMicroelectronics ↗

File Size:

566.01 KB

Description:

Fully autoprotected power mosfet.

📁 Related Datasheet

VND7N04 - FULLY AUTOPROTECTED POWER MOSFET (STMicroelectronics)
VND7N04, VND7N04-1 VNK7N04FM OMNIFET : Fully autoprotected power MOSFET Features Type VND7N04 VND7N04-1 VNK7N04FM Vclamp 42 V 42 V 42 V RDS(on) 0.

VND7NV04 - FULLY AUTOPROTECTED POWER MOSFET (STMicroelectronics)
VNN7NV04, VNS7NV04 VND7NV04, VND7NV04-1 OMNIFET II fully autoprotected Power MOSFET Features Type RDS(on) Ilim Vclamp VNN7NV04 VNS7NV04 VND7NV04 V.

VND7NV04-1 - FULLY AUTOPROTECTED POWER MOSFET (STMicroelectronics)
VNN7NV04, VNS7NV04 VND7NV04, VND7NV04-1 OMNIFET II fully autoprotected Power MOSFET Features Type RDS(on) Ilim Vclamp VNN7NV04 VNS7NV04 VND7NV04 V.

VND7012AY - Double channel high-side driver (STMicroelectronics)
VND7012AY Double channel high-side driver with MultiSense analog feedback for automotive applications Datasheet - production data Features Max trans.

VND7020AJ - Double channel high-side driver (STMicroelectronics)
VND7020AJ Double channel high-side driver with MultiSense analog feedback for automotive applications Datasheet - production data Features Max trans.

VND7020AJ-E - Double channel high-side driver (STMicroelectronics)
VND7020AJ-E Double channel high-side driver with MultiSense analog feedback for automotive applications Datasheet − production data Features Max tran.

VND7030AJ - Double channel high-side driver (STMicroelectronics)
VND7030AJ Double channel high-side driver with MultiSense analog feedback for automotive applications Datasheet - production data − Loss of ground a.

VND7040AJ - Double channel high-side driver (STMicroelectronics)
VND7040AJ Double channel high-side driver with MultiSense analog feedback for automotive applications Datasheet - production data Features Max trans.

TAGS

VND7N04-1 FULLY AUTOPROTECTED POWER MOSFET STMicroelectronics

Image Gallery

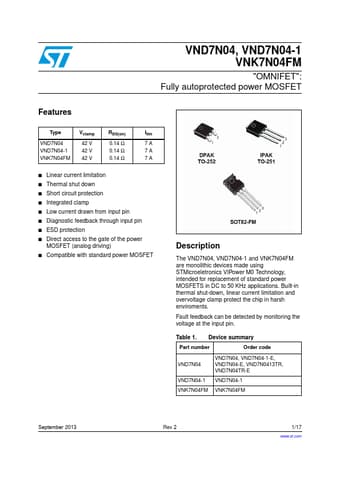

VND7N04-1 Datasheet Preview Page 2 VND7N04-1 Datasheet Preview Page 3
