VND7N04

FULLY AUTOPROTECTED POWER MOSFET

VND7N04 Features

* Type VND7N04 VND7N04-1 VNK7N04FM Vclamp 42 V 42 V 42 V RDS(on) 0.14 Ω 0.14 Ω 0.14 Ω Ilim 7A 7A 7A s Linear current limitation s Thermal shut down s Short circuit protection s Integrated clamp s Low current drawn from input pin s Diagnostic feedback through input pin s ESD protection s Direct ac

VND7N04 General Description

The VND7N04, VND7N04-1 and VNK7N04FM are monolithic devices made using STMicroeletronics VIPower M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limitation and overvoltage clamp protect the chip in harsh envir.

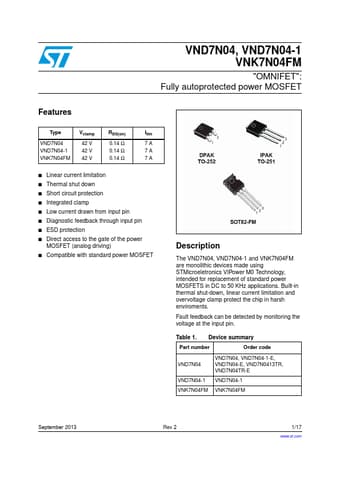

VND7N04 Datasheet (566.00 KB)

Preview of VND7N04 PDF

Datasheet Details

Part number:

VND7N04

Manufacturer:

STMicroelectronics ↗

File Size:

566.00 KB

Description:

Fully autoprotected power mosfet.

📁 Related Datasheet

VND7N04-1 - FULLY AUTOPROTECTED POWER MOSFET (STMicroelectronics)
VND7N04, VND7N04-1 VNK7N04FM OMNIFET : Fully autoprotected power MOSFET Features Type VND7N04 VND7N04-1 VNK7N04FM Vclamp 42 V 42 V 42 V RDS(on) 0.
