VND7NV04

FULLY AUTOPROTECTED POWER MOSFET

STMicroelectronics

VND7NV04 Features

* Type RDS(on) Ilim Vclamp VNN7NV04 VNS7NV04 VND7NV04 VND7NV04-1 60 mΩ 6A 40 V

* Linear current limitation

* Thermal shutdown

* Short circuit protection

* Integrated clamp

* Low current drawn from input pin

* Diagnostic feedback through input pin

* ESD protection

VND7NV04 General Description

The VNN7NV04, VNS7NV04, VND7NV04 VND7NV04-1, are monolithic devices designed in STMicroelectronics VIPower M0-3 Technology, intended for replacement of standard Power MOSFETs from DC up to 50 kHz applications. Built in thermal shutdown, linear current limitation and overvoltage clamp protect the chi.

VND7NV04 Datasheet (406.99 KB)

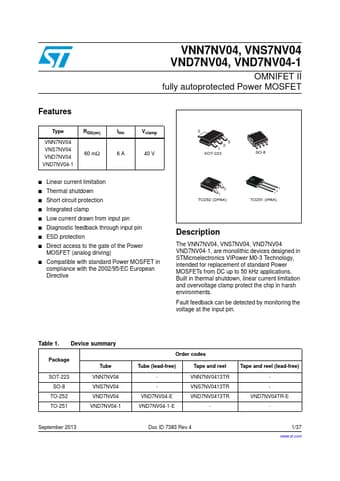

VND7NV04 Datasheet Preview — Preview of VND7NV04 PDF

Datasheet Details

Part number:

VND7NV04

Manufacturer:

STMicroelectronics ↗

File Size:

406.99 KB

Description:

Fully autoprotected power mosfet.
