VNN7NV04PTR-E - OMNIFET II fully autoprotected Power MOSFET

STMicroelectronics

The VNN7NV04PTR-E by STMicroelectronics is a OMNIFET II fully autoprotected Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

VNN7NV04PTR-E OMNIFET II fully autoprotected Power MOSFET by STMicroelectronics - Datasheet Preview — Official preview page of the **VNN7NV04PTR-E** OMNIFET II fully autoprotected Power MOSFET datasheet (STMicroelectronics).

Datasheet Details

Part number	VNN7NV04PTR-E
Manufacturer	STMicroelectronics
File Size	322.17 KB
Description	OMNIFET II fully autoprotected Power MOSFET
Datasheet	VNN7NV04PTR-E-STMicroelectronics.pdf

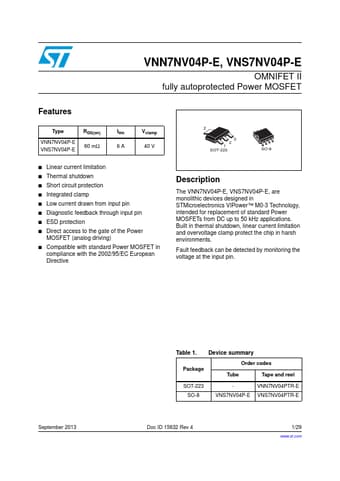

Additional preview pages of the VNN7NV04PTR-E datasheet.

VNN7NV04PTR-E Product details

Description

The VNN7NV04P-E, VNS7NV04P-E, are monolithic devices designed in STMicroelectronics VIPower™ M0-3 Technology, intended for replacement of standard Power MOSFETs from DC up to 50 kHz applications. Table 1.

Features

Type VNN7NV04P-E VNS7NV04P-E.
RDS(on) 60 mΩ Ilim 6A Vclamp 40 V 2 1 2 3 SOT-223 SO-8 Linear current limitation Thermal shutdown Short circuit protection Integrated clamp Low current drawn from input pin Diagnostic feedback through input pin ESD protection Direct access to the gate of the Power MOSFET (analog driving) Compatible with standard Power MOSFET in compliance with the 2002/95/EC European Directive.
