VNN3NV04

FULLY AUTOPROTECTED POWER MOSFET

VNN3NV04 Features

* Type VNN3NV04 VNS3NV04 VND3NV04 VND3NV04-1 RDS(on) 120 mΩ Ilim 3.5 A Vclamp 40 V

* Linear current limitation

* Thermal shutdown

* Short circuit protection

* Integrated clamp

* Low current drawn from input pin

* Diagnostic feedback through input pin

* ESD protection

VNN3NV04 General Description

The VNN3NV04, VNS3NV04, VND3NV04 VND3NV04-1, are monolithic devices designed in STMicroelectronics™ VIPower™ M0-3 Technology, intended for replacement of standard Power MOSFETs from DC up to 50 kHz applications. Built in thermal shutdown, linear current limitation and overvoltage clamp protect the c.

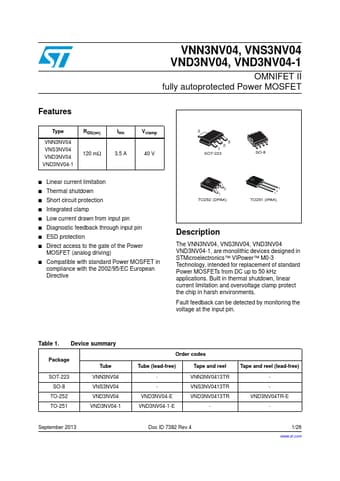

VNN3NV04 Datasheet (303.15 KB)

Preview of VNN3NV04 PDF

Datasheet Details

Part number:

VNN3NV04

Manufacturer:

STMicroelectronics ↗

File Size:

303.15 KB

Description:

Fully autoprotected power mosfet.
