VNN7NV04P-E

OMNIFET II fully autoprotected Power MOSFET

VNN7NV04P-E Features

* Type VNN7NV04P-E VNS7NV04P-E

* RDS(on) 60 mΩ Ilim 6A Vclamp 40 V 2 SOT-223 1 2 3 SO-8 Linear current limitation Thermal shutdown Short circuit protection Integrated clamp Low current drawn from input pin Diagnostic feedback through input

VNN7NV04P-E General Description

The VNN7NV04P-E, VNS7NV04P-E, are monolithic devices designed in STMicroelectronics VIPower™ M0-3 Technology, intended for replacement of standard Power MOSFETs from DC up to 50 kHz applications. Built in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh env.

VNN7NV04P-E Datasheet (534.17 KB)

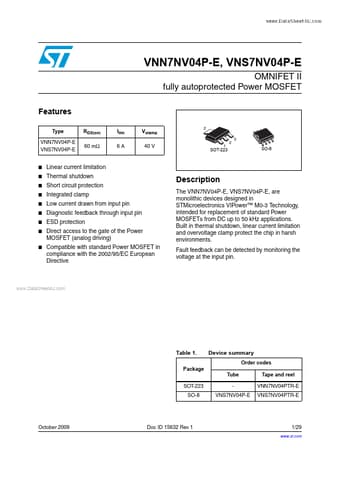

Preview of VNN7NV04P-E PDF

Datasheet Details

Part number:

VNN7NV04P-E

Manufacturer:

STMicroelectronics ↗

File Size:

534.17 KB

Description:

Omnifet ii fully autoprotected power mosfet.
