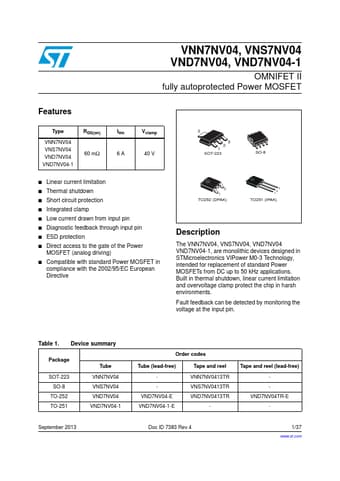

VNN7NV04 Datasheet, Mosfet, STMicroelectronics

VNN7NV04 Features

• Mosfet Type RDS(on) Ilim Vclamp VNN7NV04 VNS7NV04 VND7NV04 VND7NV04-1 60 mΩ 6A 40 V
• Linear current limitation
• Thermal shutdown
• Short circuit protection

PDF File Details

Part number:

VNN7NV04

Manufacturer:

STMicroelectronics ↗

File Size:

391.03kb

Download:

📄 Datasheet

Description:

Fully autoprotected power mosfet. The VNN7NV04, VNS7NV04, VND7NV04 VND7NV04-1, are monolithic devices designed in STMicroelectronics VIPower M0-3 Technology, intended

VNN7NV04 Application

• Applications Built in thermal shutdown, linear current limitation and overvoltage clamp protect the chip in harsh environments. Fault feedback can
