STU420S Datasheet - SamHop Microelectronics

STU420S N-Channel Logic Level Enhancement Mode Field Effect Transistor

S T U/D420S S amHop Microelectronics C orp. J uly 05 , 2006 N-C hannel Logic Level E nhancement Mode Field E ffect Transistor P R ODUC T S UMMAR Y V DS S 40V F E AT UR E S ( mW) ID 24A R DS (ON) Max S uper high dense cell design for low R DS (ON ). 24 @ V G S = 10V 30 @ V G S = 4.5V R ugged and reliable. TO-252 and TO-251 P ackage. D D G S G D S G S TU S E R IE S TO-252AA(D-P AK) S TD S E R IE S TO-251(l-P AK) S ABS OLUTE MAXIMUM R ATINGS (T A=25 C unless otherwise noted) P aramet.

STU420S Datasheet (338.11 KB)

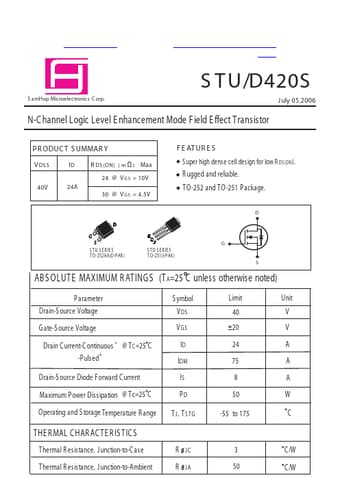

STU420S Datasheet Preview — Preview of STU420S PDF

Datasheet Details

Part number:

STU420S

Manufacturer:

SamHop Microelectronics

File Size:

338.11 KB

Description:

N-channel logic level enhancement mode field effect transistor.
