K4S280832I - JEDEC standard 3.3V power supply LVTTL compatible

Product Overview

Samsung Semiconductor

Datasheet Details

Part number	K4S280832I
Manufacturer	Samsung Semiconductor
File Size	252.84 KB
Description	JEDEC standard 3.3V power supply LVTTL compatible
Datasheet	K4S280832I Datasheet
Note	This datasheet PDF includes multiple part numbers: K4S280832I, K4S281632I. Please refer to the document for exact specifications by model.

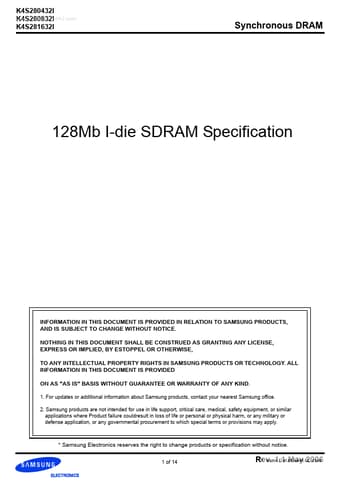

Additional preview pages of the K4S280832I datasheet.

Product details

Description

The K4S280432I / K4S280832I / K4S281632I is 134,217,728 bits synchronous high data rate Dynamic RAM organized as 4 x 8,388,608 words by 4 bits / 4 x 4,194,304 words by 8 bits / 4 x 2,097,152 words by 16 bits, fabricated with SAMSUNG′s high performance CMOS technology.

Features

JEDEC standard 3.3V power supply LVTTL compatible with multiplexed address Four banks operation MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave).
All inputs are sampled at the positive going edge of the system clock.
Burst read single-bit write operation.
DQM (x4,x8) & L(U)DQM (x16) for masking.
Auto & self refresh.
64ms.
