K4S281632C-TP75 - 128Mbit SDRAM 2M x 16Bit x 4 Banks Synchronous DRAM LVTTL

Datasheet Summary

Description

The K4S281632C is 134,217,728 bits synchronous high data rate Dynamic RAM organized as 4 x 2,097,152 words by 16 bits, fabricated with SAMSUNG′s high performance CMOS technology.

Features

  • JEDEC standard 3.3V power supply.
  • LVTTL compatible with multiplexed address.
  • Four banks operation.
  • MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave).
  • All inputs are sampled at the positive going edge of the system clock.
  • Burst read single-bit write operation.
  • DQM for masking.
  • Auto & self refresh.
  • 64ms refresh period (4K cycle.

📥 Download Datasheet

Datasheet preview – K4S281632C-TP75

Datasheet Details

Part number K4S281632C-TP75
Manufacturer Samsung semiconductor
File Size 47.25 KB
Description 128Mbit SDRAM 2M x 16Bit x 4 Banks Synchronous DRAM LVTTL
Datasheet download datasheet K4S281632C-TP75 Datasheet
Additional preview pages of the K4S281632C-TP75 datasheet.

📁 Similar Datasheet

Other Datasheets by Samsung semiconductor
  • K4S281632C-TP - 128Mbit SDRAM 2M x 16Bit x 4 Banks Synchronous DRAM LVTTL
  • K4S281632C-TP1H - 128Mbit SDRAM 2M x 16Bit x 4 Banks Synchronous DRAM LVTTL
  • K4S281632C-TP1L - 128Mbit SDRAM 2M x 16Bit x 4 Banks Synchronous DRAM LVTTL
  • K4S281632C-TC1H - 128Mbit SDRAM 2M x 16Bit x 4 Banks Synchronous DRAM LVTTL
  • K4S281632C-TC1L - 128Mbit SDRAM 2M x 16Bit x 4 Banks Synchronous DRAM LVTTL
  • K4S281632C-TC75 - 128Mbit SDRAM 2M x 16Bit x 4 Banks Synchronous DRAM LVTTL
  • K4S281632C-TI - 128Mbit SDRAM 2M x 16Bit x 4 Banks Synchronous DRAM LVTTL
  • K4S281632C-TI1H - 128Mbit SDRAM 2M x 16Bit x 4 Banks Synchronous DRAM LVTTL

Full PDF Text Transcription

Click to expand full text

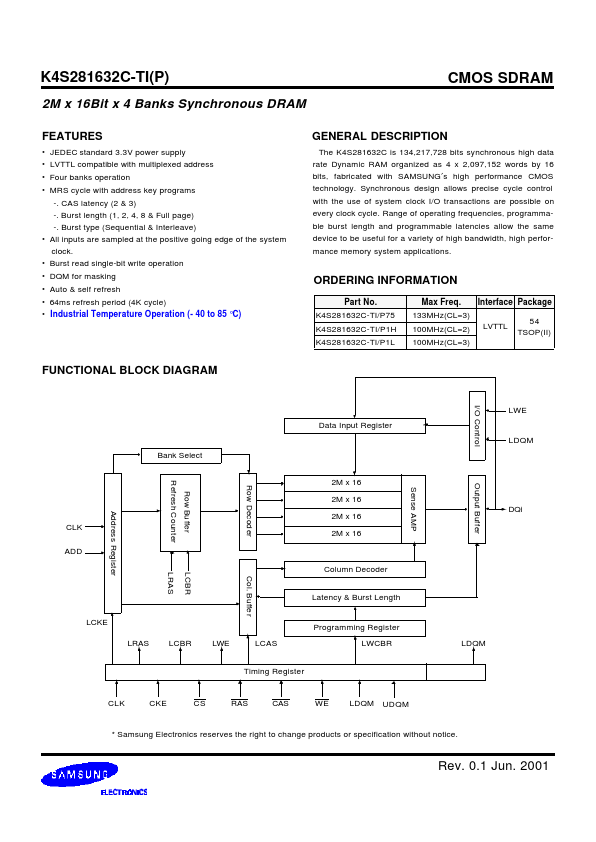

K4S281632C-TI(P) CMOS SDRAM 128Mbit SDRAM 2M x 16Bit x 4 Banks Synchronous DRAM LVTTL Revision 0.1 June 2001 * Samsung Electronics reserves the right to change products or specification without notice. Rev. 0.1 Jun. 2001 K4S281632C-TI(P) Revision History Revision 0.0 (November 18, 2000) • First generation. CMOS SDRAM Revision 0.1 (June 20, 2001) • Final Specification. Rev. 0.1 Jun. 2001 K4S281632C-TI(P) 2M x 16Bit x 4 Banks Synchronous DRAM FEATURES • JEDEC standard 3.3V power supply • LVTTL compatible with multiplexed address • Four banks operation • MRS cycle with address key programs -. CAS latency (2 & 3) -. Burst length (1, 2, 4, 8 & Full page) -. Burst type (Sequential & Interleave) • All inputs are sampled at the positive going edge of the system clock.
