K6R1008V1D

64Kx16 Bit High-Speed CMOS Static RAM(3.3V Operating) Operated at Commercial and Industrial Temperature Ranges.

K6R1008V1D Features

* Fast Access Time 8,10ns(Max.)

* Low Power Dissipation Standby (TTL) : 20mA(Max.) (CMOS) : 5mA(Max.) Operating K6R1008V1D-08: 80mA(Max.) K6R1008V1D-10: 65mA(Max.)

* Single 3.3±0.3V Power Supply

* TTL Compatible Inputs and Outputs

* Fully Static Operation - No

K6R1008V1D General Description

The K6R1008V1D is a 1,048,576-bit high-speed Static Random Access Memory organized as 131,072 words by 8 bits. The K6R1008V1D uses 8 common input and output lines and has an output enable pin which operates faster than address access time at read cycle. The device is fabricated using SAMSUNG ′s adva.

K6R1008V1D Datasheet (181.85 KB)

Preview of K6R1008V1D PDF

Datasheet Details

Part number:

K6R1008V1D

Manufacturer:

Samsung semiconductor

File Size:

181.85 KB

Description:

64kx16 bit high-speed cmos static ram(3.3v operating) operated at commercial and industrial temperature ranges..

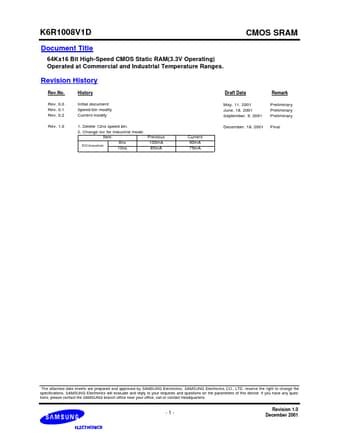

PRELIMINARY K6R1008V1D Document Title 64Kx16 Bit High-Speed CMOS Static RAM(3.3V Operating) Operated at Commercial and Industrial Temperature Ranges. .
