K6R1008C1A-C15 128Kx8 High Speed Static RAM5V Operating/ Revolutionary Pin out. Operated at Commercial and Industrial Temperature Ranges.

Samsung semiconductor

Description

PRELIMINARY K6R1008C1A-C, K6R1008C1A-I Document Title 128Kx8 High Speed Static RAM(5V Operating), Revolutionary Pin out.Operated at Commercial and In.
The K6R1008C1A is a 1,048,576-bit high-speed Static Random Access Memory organized as 131,072 words by 8 bits.

📥 Download Datasheet

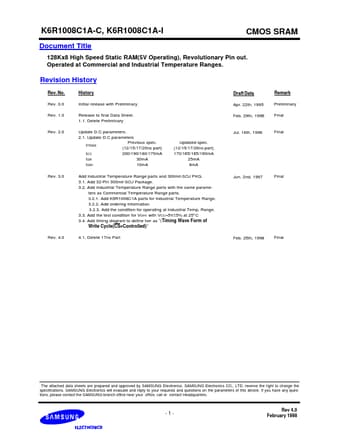

K6R1008C1A-C15 Datasheet Preview — Preview of K6R1008C1A-C15 PDF

Datasheet Specifications

Part number: K6R1008C1A-C15
Manufacturer: Samsung semiconductor
File Size: 168.44 KB
Datasheet: K6R1008C1A-C15_Samsungsemiconductor.pdf
Description: 128Kx8 High Speed Static RAM5V Operating/ Revolutionary Pin out. Operated at Commercial and Industrial Temperature Ranges.

Features

* Fast Access Time 12, 15, 20ns(Max. )
* Low Power Dissipation Standby (TTL) : 25mA(Max. ) (CMOS) : 8mA(Max. ) Operating K6R1008C1A-12 : 170mA(Max. ) K6R1008C1A-15 : 165mA(Max. ) K6R1008C1A-20 : 160mA(Max. )
* Single 5.0V±10% Power Supply
* TTL Compatible Inputs and Outputs

Applications

* The K6R1008C1A is packaged in a 400mil 32-pin plastic SOJ or TSOP2 forward. ORDERING INFORMATION K6R1008C1A-C12/C15/C20 K6R1008C1A-I12/I15/I20 Commercial Temp. Industrial Temp. PIN CONFIGURATION (Top View) A0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 32 A16 31 A15 30 A14 29 A13 28 OE FUNCTIONAL
