K6R1008C1A-C20 Datasheet - Samsung semiconductor

K6R1008C1A-C20 128Kx8 High Speed Static RAM5V Operating/ Revolutionary Pin out. Operated at Commercial and Industrial Temperature Ranges.

The K6R1008C1A is a 1,048,576-bit high-speed Static Random Access Memory organized as 131,072 words by 8 bits. The K6R1008C1A uses 8 common input and output lines and has an output enable pin which operates faster than address access time at read cycle. The device is fabricated using SAMSUNG′s advan.

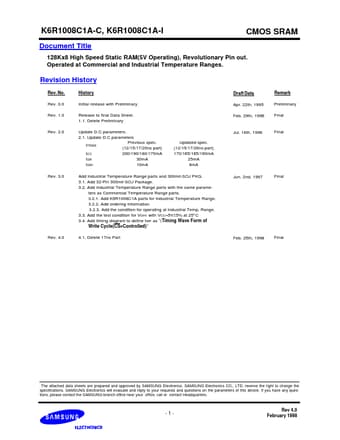

PRELIMINARY K6R1008C1A-C, K6R1008C1A-I Document Title 128Kx8 High Speed Static RAM(5V Operating), Revolutionary Pin out. Operated at Commercial and Industrial Temperature Ranges. CMOS SRAM Revision History Rev. No. Rev. 0.0 Rev. 1.0 History Initial release with Preliminary. Release to final Data Sheet. 1.1. Delete Preliminary Update D.C parameters. 2.1. Update D.C parameters Previous spec. ITEMS (12/15/17/20ns part) ICC 200/190/180/170mA ISB 30mA ISB1 10mA Draft Data Apr. 22th, 1995 Feb. 29th,.

K6R1008C1A-C20 Features

* Fast Access Time 12, 15, 20ns(Max.)

* Low Power Dissipation Standby (TTL) : 25mA(Max.) (CMOS) : 8mA(Max.) Operating K6R1008C1A-12 : 170mA(Max.) K6R1008C1A-15 : 165mA(Max.) K6R1008C1A-20 : 160mA(Max.)

* Single 5.0V±10% Power Supply

* TTL Compatible Inputs and Outputs

K6R1008C1A-C20_Samsungsemiconductor.pdf

K6R1008C1A-C20 Datasheet Preview — Preview of K6R1008C1A-C20 PDF

Datasheet Details

Part number:

K6R1008C1A-C20

Manufacturer:

Samsung semiconductor

File Size:

168.44 KB

Description:

128kx8 high speed static ram5v operating/ revolutionary pin out. operated at commercial and industrial temperature ranges..
