K7P163866A (K7P161866A / K7P163866A) 512Kx36 AND 1Mx18 Synchronous Pipelined SRAM

Pin Name K, K SAn DQn SW SWa SWb SWc SWd ZZ VDD VDDQ Pin Description Differential Clocks Synchronous Address Input Bi-directional Data Bus Synchronous Global Write Enable Synchronous Byte a Write Enable Synchronous Byte b Write Enable Synchronous Byte c Write Enable Synchronous Byte d Write Enable A.

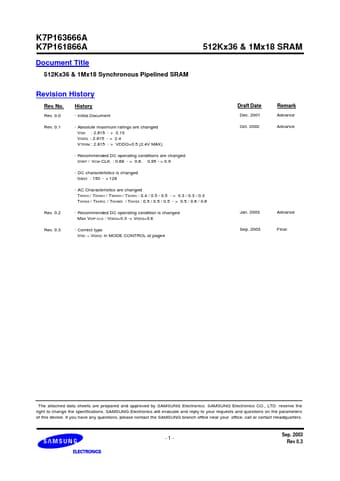

www.DataSheet4U.com K7P163666A K7P161866A Document Title 512Kx36 & 1Mx18 Synchronous Pipelined SRAM 512Kx36 & 1Mx18 SRAM Revision History Rev. No. Rev. 0.0 Rev. 0.1 History - Initial Document - Absolute maximum ratings are changed VDD : 2.815 - > 3.13 VDDQ : 2.815 - > 2.4 VTERM : 2.815 - > VDDQ+0.5 (2.4V MAX) - Recommended DC operating conditions are changed VREF / VCM-CLK : 0.68 - > 0.6, 0.95 - > 0.9 - DC characteristics is changed ISBZZ : 150 - > 128 - AC Characteristics are changed TAVKH .

K7P163866A Features

* 512Kx36 or 1Mx18 Organizations.

* 2.5V Core/1.5V Output Power Supply (1.9V max VDDQ).

* HSTL Input and Output Levels.

* Differential, HSTL Clock Inputs K, K.

* Synchronous Read and Write Operation

* Registered Input and Registered Output

* In
