S5T8555

TIME SLOT ASSIGNMENT CIRCUIT

S5T8555 Features

* Single, 5V operation Low power consumption: 5mW Controls four 1 CHIP CODEC Independent transmit and receive frame syncs channel unidirectional mode Up to 64 time slots per frame Compatible with S5T8554B/7B CODECs TTL and

S5T8555 General Description

A Transmit frame sync output which is normally low, and goes active-high for 8 cycles of BCLK when a valid transmit time slot assignment is made. A Receive frame sync output which is normally low, and goes active-high for 8 cycles of BCLK when a valid receive time slot assignment is made. This pin.

S5T8555 Datasheet (85.29 KB)

Preview of S5T8555 PDF

Datasheet Details

Part number:

S5T8555

Manufacturer:

Samsung semiconductor

File Size:

85.29 KB

Description:

Time slot assignment circuit.

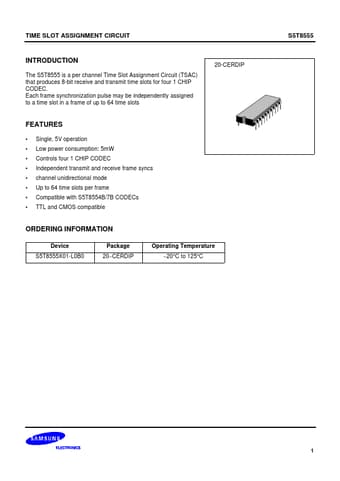

TIME SLOT ASSIGNMENT CIRCUIT S5T8555 INTRODUCTION The S5T8555 is a per channel Time Slot Assignment Circuit (TSAC) that produces 8-bit receive and t.
