S5T8803A

10 CH PLL

S5T8803A Features

* Able to select 10 Channels: S5T8803A (both transmit/receive) Include oscillation circuit with external x-tal (10.24MHz) 5KHz output for guard tone Unlock detector (phase difference more than 6.25us) Standby function for power saving 16

* SOP

S5T8803A General Description

Pin No 1 2 Symbol OSCO MODE Description This output generates the reference frequency when it is connected to Pin 16 with the external OSC, whose frequency is 10.24MHz. Base/Remote Unit Selection Pin. “High”: Base Unit “Low” : Remote Unit Standby pin. This input controls Tx PLL for reducing the powe.

S5T8803A Datasheet (109.70 KB)

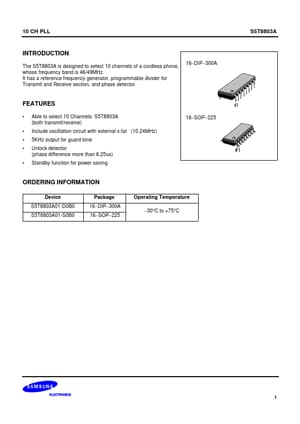

Preview of S5T8803A PDF

Datasheet Details

Part number:

S5T8803A

Manufacturer:

Samsung semiconductor

File Size:

109.70 KB

Description:

10 ch pll.
10 CH PLL S5T8803A INTRODUCTION The S5T8803A is designed to select 10 channels of a cordless phone, whose frequency band is 46/49MHz. It has a refer.
