K4D263238D - 1M x 32Bit x 4 Banks Double Data Rate Synchronous DRAM

Product Overview

Samsung

Datasheet Details

Part number	K4D263238D
Manufacturer	Samsung
File Size	239.98 KB
Description	1M x 32Bit x 4 Banks Double Data Rate Synchronous DRAM
Datasheet	K4D263238D Datasheet

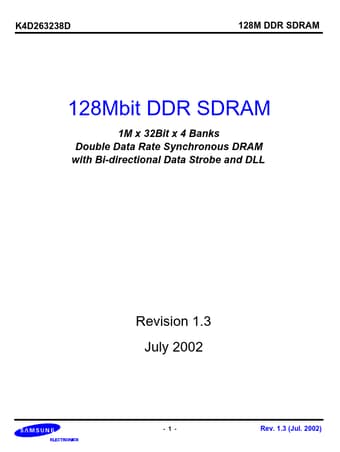

Additional preview pages of the K4D263238D datasheet.

Product details

Description

FOR 1M x 32Bit x 4 Bank DDR SDRAM The K4D263238D is 134,217,728 bits of hyper synchronous data rate Dynamic RAM organized as 4 x 1,048,576 words by 32 bits, fabricated with SAMSUNG′s high performance CMOS technology.Synchronous

Features

2.5V ± 5% power supply.
SSTL_2 compatible inputs/outputs.
4 banks operation.
MRS cycle with address key programs -. Read latency 3,4 (clock) -. Burst length (2, 4, 8 and Full page) -. Burst type (sequential & interleave).
Full page burst length for sequential burst type only.
Start address of the full page burst should be even.
All inputs except data & DM are sampled at the positive going edge of the system clock.
Different.
