DS065008C2 - SiC Schottky Barrier Diode

📥 Download Datasheet

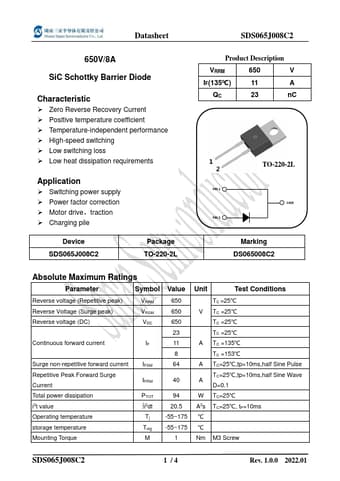

Preview of DS065008C2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number DS065008C2
Manufacturer Sanan
File Size 312.50 KB
Description SiC Schottky Barrier Diode
Datasheet download datasheet DS065008C2-Sanan.pdf

DS065008C2 Product details

Description

VRRM 650 V IF(135℃) 11 A QC 23 nC TO-220-2L PIN 1 PIN 2 CASE Marking DS065008C2 Absolute Maximum Ratings Parameter Symbol Value Unit Test Conditions Reverse voltage (Repetitive peak) VRRM 650 TC =25℃ Reverse Voltage (Surge peak) VRSM 650 V TC =25℃ Reverse voltage (DC) VDC 650 TC =25℃ 23 TC =25℃ Continuous forward current IF 11 A TC =135℃ 8 TC =153℃ Surge non-repetitive forward current IFSM 64 A TC=25℃,tp=10ms,half Sine Pulse Repetitive Peak Forward Surge
