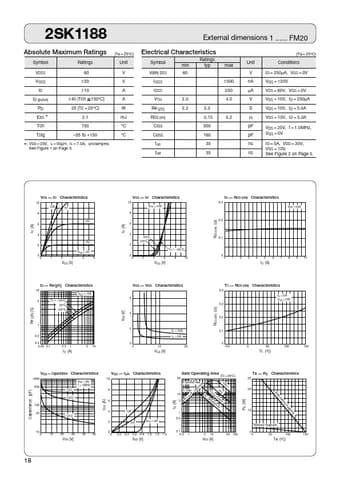

2SK1188 Absolute Maximum Ratings Symbol VDSS VGSS ID ID (pulse) PD EAS Tch Tstg Ratings 60 ± 20 ± 10 ± 40 (Tch 150ºC) (Ta = 25ºC) External dimensions 1 FM20 Electrical Characteristics Symbol V(BR) DSS I GSS I DSS VTH Re (yfs) RDS (on) Ciss Coss t on t off 2.0 2.2 3.3 0.15 300 160 35 35 0.2 min 60 ± 500 250 4.0 Ratings typ max Unit V nA µA V S Ω pF pF ns ns (Ta = 25ºC) Unit V V A A W mJ ºC ºC Conditions I D = 250µA, VGS = 0V VGS = ± 20V VDS = 60V, VGS = 0V VDS = 10V, I D = 250µA VDS = 10V, I .
