Part number:
2SA1520
Manufacturer:
Sanyo Semicon Device
File Size:
42.97 KB
Description:
Pnp/npn epitaxial planar silicon transistors.
2SA1520_SanyoSemiconDevice.pdf
Datasheet Details
2SA1520 Features
* On-chip bias resistance : R1=2.2kΩ, R2=10kΩ.
* Small-sized package : CP.

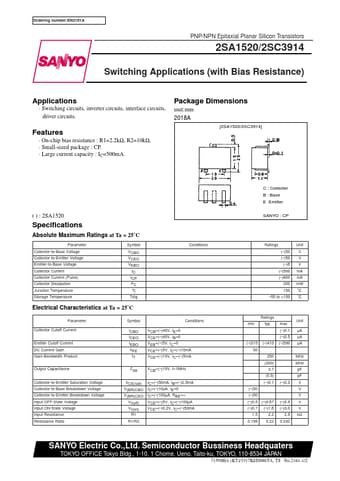

* Large current capacity : IC=500mA. Package Dimensions unit:mm 2018A [2SA1520/2SC3914] ( ) : 2SA1520 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitte
