2SA1524 Datasheet, Transistors, Sanyo Semicon Device

2SA1524 Features

  • Transistors
  • On-chip bias resistance : R1=2.2kΩ, R2=10kΩ.
  • Small-sized package : SPA.
  • Large current capacity : IC=500mA. Package Dimensions unit:mm 2033 [2SA1524/2SC391

PDF File Details

Part number:

2SA1524

Manufacturer:

Sanyo Semicon Device

File Size:

42.91kb

Download:

📄 Datasheet

Description:

Pnp/npn epitaxial planar silicon transistors.

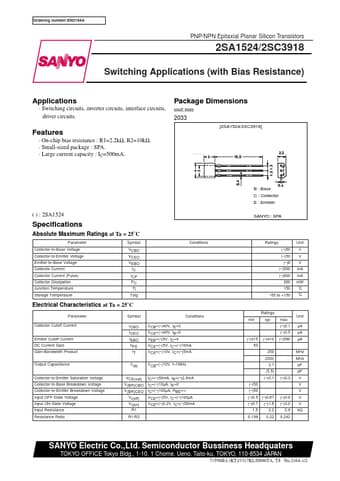

Datasheet Preview: 2SA1524 📥 Download PDF (42.91kb)
Page 2 of 2SA1524

2SA1524 Application

  • Applications (with Bias Resistance) Applications
  • Switching circuits, inverter circuits, interface circuits, driver circuits. Features
