2SA1521 Datasheet - Sanyo Semicon Device

2SA1521 PNP/NPN Epitaxial Planar Silicon Transistors

2SA1521 Features

* On-chip bias resistance : R1=2.2kΩ, R2=2.2kΩ.

* Small-sized package : CP.

* Large current capacity : IC=500mA. Package Dimensions unit:mm 2018A [2SA1521/2SC3915] ( ) : 2SA1521 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emit

2SA1521 Datasheet (44.92 KB)

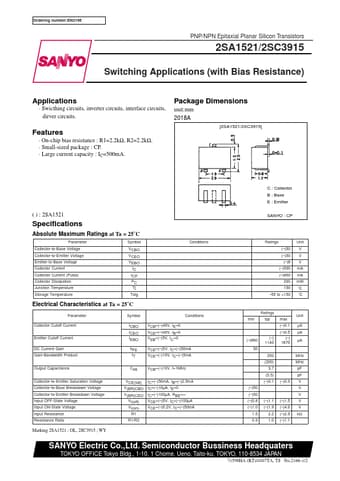

2SA1521 Datasheet Preview — Preview of 2SA1521 PDF

Datasheet Details

Part number:

2SA1521

Manufacturer:

Sanyo Semicon Device

File Size:

44.92 KB

Description:

Pnp/npn epitaxial planar silicon transistors.
