2SB1223 - PNP/NPN Transistors

Datasheet Summary

Features

  • High DC current gain.
  • Large current capacity and wide ASO.
  • Micaless package facilitating mounting. Package Dimensions unit:mm 2041A [2SB1223/2SD1825] ( ) : 2SB1223 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Symbol VCBO VCEO VEBO IC ICP PC Junction Temperature Storage Temperature Tj Tstg Electrical Character.

📥 Download Datasheet

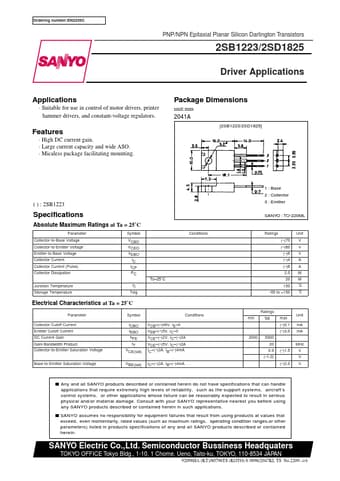

Datasheet preview – 2SB1223
