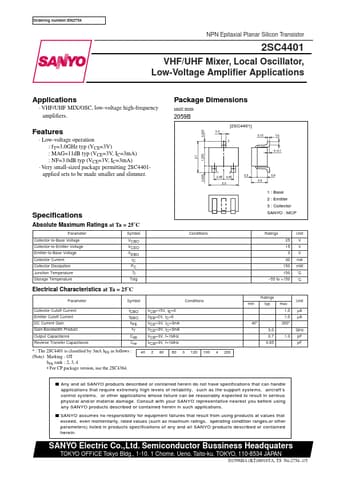

Ordering number:EN2754
NPN Epitaxial Planar Silicon Transistor
2SC4401
VHF/UHF Mixer, Local Oscillator, Low-Voltage Amplifier Applications
Applications
· VHF/UHF MIX/OSC, low-voltage high-frequency amplifiers.
Package Dimensions
unit:mm 2059B
Features
· Low-voltage operation
: fT=3.0GHz typ (VCE=3V) : MAG=11dB typ (VCE=3V, IC=3mA) : NF=3.0dB typ (VCE=3V, IC=3mA) · Very small-sized package permitting 2SC4401-
applied sets to be made smaller and slimmer.
2.1 1.250
0.425
0.425
[2SC4401]
0.3 0.15
3
0.2
0~0.1
12 0.65 0.65
2.0
0.3 0.6 0.
