2SC4402 - NPN Transistor

Datasheet Summary

Features

  • Low-voltage operation : fT=3.0GHz typ (VCE=3V) : MAG=12dB typ (VCE=3V, IC=10mA) : NF=1.5dB typ (VCE=3V, IC=5mA).
  • Very small-sized package permitting 2SC4402- applied sets to be made smaller and slimmer. 2.1 1.250 0.425 0.425 [2SC4402] 0.3 0.15 3 0.2 0~0.1 12 0.65 0.65 2.0 0.3 0.6 0.9 Specifications 1 : Base 2 : Emitter 3 : Collector SANYO : MCP Absolute Maximum Ratings at Ta = 25˚C Parameter Symbol Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Vo.

📥 Download Datasheet

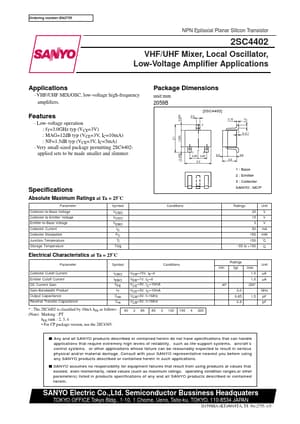

Datasheet preview – 2SC4402
