2SC4403 - NPN Transistor

Datasheet Summary

Features

  • High cutoff frequency : fT=3.0GHz typ.
  • High power gain : MAG=12dB typ (f=0.9GHz).
  • Small noise figure : NF=2.5dB typ (f=0.9GHz).
  • Very small-sized package permitting 2SC4403- applied sets to be made smaller and slimmer. 2.1 1.250 0.425 Package Dimensions unit:mm 2059B [2SC4403] 0.3 3 0.15 0.2 0~0.1 0.425 12 0.65 0.65 2.0 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Symbol Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Volt.

📥 Download Datasheet

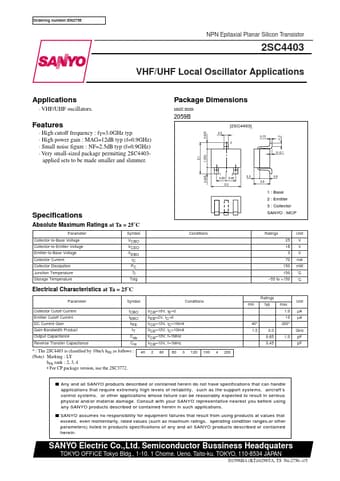

Datasheet preview – 2SC4403
