2SC4485 - PNP/NPN Epitaxial Planar Silicon Transistors

Datasheet Summary

Features

Adoption of FBET process.
Fast switching speed. Package Dimensions unit:mm 2064 [2SA1705/2SC4485] ( ) : 2SA1705 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Electrical Characteristics at Ta = 25˚C Conditions Parameter Collector Cutoff.

Sanyo Semicon Device

📥 Download Datasheet

Datasheet Details

Part number	2SC4485
Manufacturer	Sanyo Semicon Device
File Size	122.48 KB
Description	PNP/NPN Epitaxial Planar Silicon Transistors
Datasheet	2SC4485 Datasheet
Additional preview pages of the 2SC4485 datasheet.

📁 Similar Datasheet

2SC4482 - Bipolar Transistor (ON Semiconductor)
2SC4487 - Bipolar Transistor (ON Semiconductor)
2SC4488 - Bipolar Transostor (ON Semiconductor)
2SC4489 - Bipolar Transistor (ON Semiconductor)
2SC4408 - Silicon NPN Transistor (Toshiba Semiconductor)
2SC4409 - Silicon NPN Transistor (Toshiba Semiconductor)
2SC4409 - Transistors (Kexin)
2SC4410 - Silicon NPN Transistor (Panasonic Semiconductor)
2SC4410G - Silicon NPN Transistor (Panasonic)
2SC4412 - NPN Triple Diffused Planar Silicon Transistor (Kexin)

Other Datasheets by Sanyo Semicon Device

2SC4480 - NPN Epitaxial Planar Silicon Transistor
2SC4481 - PNP/NPN Epitaxial Planar Silicon Transistors
2SC4482 - NPN Epitaxial Planar Silicon Transistor
2SC4483 - PNP/NPN Epitaxial Planar Silicon Transistor
2SC4484 - NPN Epitaxial Planar Silicon Transistors
2SC4486 - PNP/NPN Epitaxial Planar Silicon Transistors
2SC4487 - PNP/NPN Epitaxial Planar Silicon Transistors
2SC4488 - NPN Epitaxial Planar Silicon Transistors

Full PDF Text Transcription

Click to expand full text

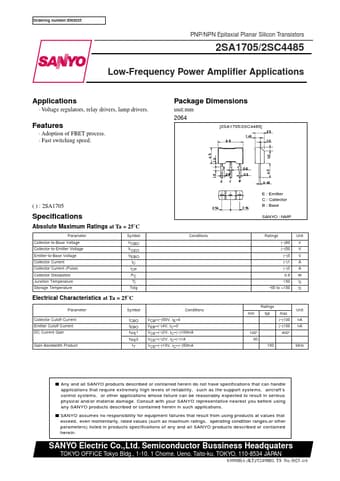

Ordering number:EN3025 PNP/NPN Epitaxial Planar Silicon Transistors 2SA1705/2SC4485 Low-Frequency Power Amplifier Applications Applications · Voltage regulators, relay drivers, lamp drivers. Features · Adoption of FBET process. · Fast switching speed.
