LB11867FV Datasheet PDF - Sanyo Semicon Device Variable Speed Single-phase Full-wave Pre-driver Specs

LB11867FV - Variable Speed Single-phase Full-wave Pre-driver

Datasheet Summary

Features

Single-phase full-wave driving pre-driver ⇒ Low-saturation drive using external PMOS-NMOS enables high-efficiency low power-consumption drive.
Variable speed control possible with external PWM input ⇒ Separately-excited upper direct PWM (f =30kHz) control method ensures highly silent speed control.
Current limiting circuit incorporated ⇒ Chopper type current limiting made at startup and during lock.
Reactive current cut circuit incorporated ⇒ Reactive cur.

Datasheet Details

Part number	LB11867FV
Manufacturer	Sanyo Semicon Device
File Size	278.31 KB
Description	Variable Speed Single-phase Full-wave Pre-driver
Datasheet	LB11867FV Datasheet
Additional preview pages of the LB11867FV datasheet.

📁 Similar Datasheet

LB11867FV - Variable Speed Single-phase Full-wave Pre-driver (ON Semiconductor)

LB11867RV - Variable Speed Single-phase Full-wave Pre-driver (ON Semiconductor)

LB11860T - (LB11861) Direct PWM Variable Speed Fan Motor Driver IC Developed (Sanyo)

LB11862MC - Fan Motor Driver (ON Semiconductor)

LB11868V - Variable Speed Single-phase Full-wave Pre-driver (ON Semiconductor)

LB11817 - Three-Phase Full-Wave Linear Drive (Sanyo)

LB11820 - Direct PWM Drive Brushless Pre-Driver (Sanyo)

LB11820M - Direct PWM Drive Brushless Pre-Driver (Sanyo)

LB11823M - Direct PWM Drive Brushless Motor Predriver (Sanyo)

LB11824 - Direct PWM Drive Brushless Motor Predriver (Sanyo)

Full PDF Text Transcription

Click to expand full text

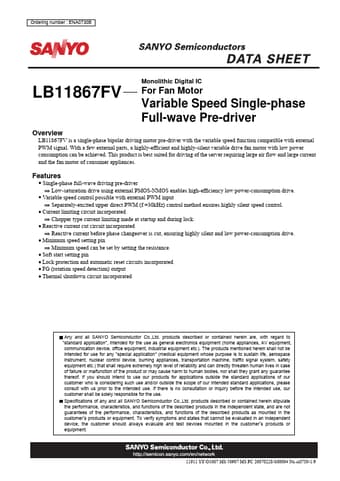

www.DataSheet.co.kr Ordering number : ENA0730B Monolithic Digital IC LB11867FV Overview For Fan Motor Variable Speed Single-phase Full-wave Pre-driver LB11867FV is a single-phase bipolar driving motor pre-driver with the variable speed function compatible with external PWM signal. With a few external parts, a highly-efficient and highly-silent variable drive fan motor with low power consumption can be achieved. This product is best suited for driving of the server requiring large air flow and large current and the fan motor of consumer appliances. Features • Single-phase full-wave driving pre-driver ⇒ Low-saturation drive using external PMOS-NMOS enables high-efficiency low power-consumption drive.
