LB11868V - Variable Speed Single-phase Full-wave Pre-driver

Datasheet Summary

Features

  • Single-phase full-wave driving pre-driver.
  • Variable speed control possible with external PWM input.
  • Current limiting circuit incorporated.
  • Reactive current cut circuit incorporated.
  • Minimum speed setting pin.
  • Soft start setting pin.
  • Start setting pin of on time.
  • Pch-FET kickback absorption setting pin.
  • Lock protection and automatic reset circuits incorporated.
  • FG (rotational speed detection) output, RD (l.

📥 Download Datasheet

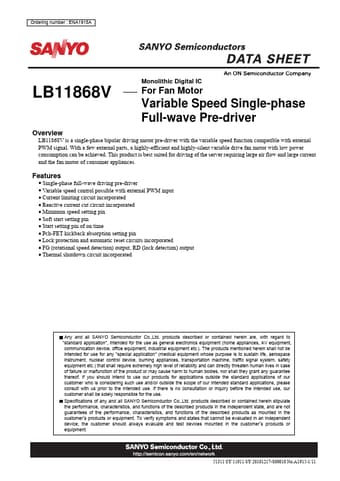

Datasheet preview – LB11868V
