STK400-290 - AF Power Amplifier

Sanyo Semicon Device

📥 Download Datasheet

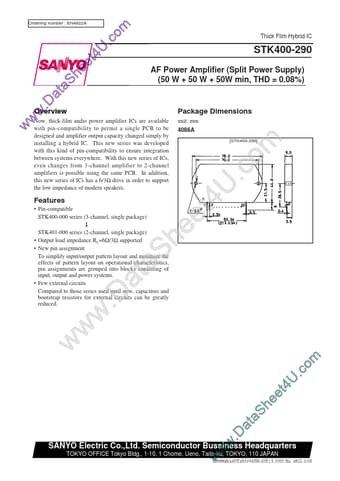

STK400-290 Datasheet Preview — Preview of STK400-290 PDF

Datasheet Details

Part number	STK400-290
Manufacturer	Sanyo Semicon Device
File Size	564.22 KB
Description	AF Power Amplifier
Datasheet	STK400-290_SanyoSemiconDevice.pdf

STK400-290 Product details

Description

of External Circuits For input coupling capacitor.Used for current blocking.When capacitor reactance with low frequency is increased, the reactance value should be reduced in order to reduce the output noise from the signal resistance dependent 1/f noise.In response to the popping noise which occurs when the system power is turned on, C1 and C11 which determine the decay time constant on the input side are increased while C3, C13 and C23 on the NF side are decreased.For input filter capacito

Features

Pin-compatible STK400-000 series (3-channel, single package) STK401-000 series (2-channel, single package).
Output load impedance RL=6Ω/3Ω supported.
New pin assignment To simplify input/output pattern layout and minimize the effects of pattern layout on operational characteristics, pin assignments are grouped into blocks consisting of input, output and power systems.
Few external circuits Compared to those series used until now, capacitors and bootstrap res.
