STK4065 Car Stereo Use Power Amplifier

STK4065 Description

( DataSheet : www.DataSheet4U.com ) Ordering number: EN 2148C Thick Film Hybrid IC STK4065 Car Stereo Use Power Amplifier (25W min, THD = 10%) Appl.

STK4065 Features

* High output power Maximum output power 40W or greater (RL = 2Ω) 35W typ. (RL = 2Ω, THD = 10%) 23W typ. (RL = 4Ω, THD = 10%)
* Low distortion
* Built-in protectors
* DC short protector
* Thermal shutdown protector (Thermal protector)
* Overvoltage pro

STK4065 Applications

* Power amplifier for car stereos

📥 Download Datasheet

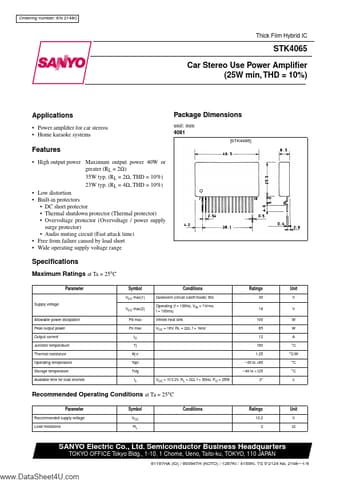

Preview of STK4065 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK4065
Manufacturer
Sanyo Semicon Device
File Size
445.96 KB
Datasheet
STK4065_SanyoSemiconDevice.pdf
Description
Car Stereo Use Power Amplifier
