STK4067 Datasheet - Sanyo Semicon Device

STK4067 High-Output Power Amplifier for Car Stereos

( DataSheet : www.DataSheet4U.com ) Ordering number : EN4376A Thick Film Hybrid IC STK4067 High-Output Power Amplifier for Car Stereos (Po = 60 W typ.) Overview Higher output amplification of the car stereo has been generally dependent on boosting voltage of the power supply. The STK4067 supports low-load impedance and is designed for up to 60 W of high output without the need for a power supply voltage booster circuit. Low operating power supply voltage range (9 V to 16 V)

STK4067 Features

* Superior heat sink capacity using IMST (insulated metal substrate technology)

* Designed for high output while supporting low-load impedance x RL = 1Ω 60 W typ. (EIAJ) 100 W (max.)  RL = 2Ω 40 W typ. (EIAJ) 70 W (max.) 40 W (max.) z RL = 4Ω 23 W typ. (EIAJ)

* Supports suff

STK4067 Datasheet (638.92 KB)

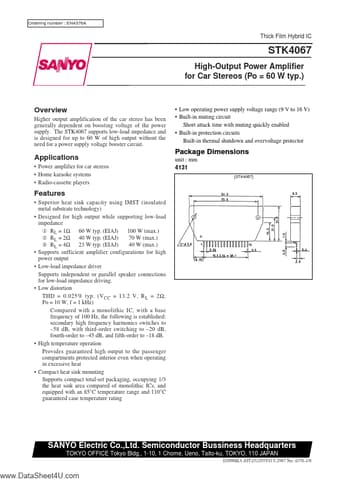

Preview of STK4067 PDF
STK4067 Datasheet Preview Page 2 STK4067 Datasheet Preview Page 3

Datasheet Details

Part number:

STK4067

Manufacturer:

Sanyo Semicon Device

File Size:

638.92 KB

Description:

High-output power amplifier for car stereos.
