A1469 - PNP/NPN Epitaxial Planar Silicon Transistors

Sanyo Semiconductor Corporation

A1469 Description

Ordering number:EN1973A PNP/NPN Epitaxial Planar Silicon Transistors 2SA1469/2SC3746 60V/5A High-Speed Switching Applications Applications * Var.

A1469 Features

* Low saturation voltage.
* Excellent current dependence of hFE.
* Short switching time.
* Micaless package facilitating mounting. 1 : Emitter 2 : Collector 3 : Base JEDEC : TO-220ML ( ) : 2SA1469 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Vol

A1469 Applications

* Applications
* Various inductance lamp drivers for electrical equipment.
* Inverters, converters (strobo, flash, fluorescent lamp lighting circuit).
* Power amp (high power car stereo, motor controller).
* High-speed switching (switching regulator, driver). Package Dimensions unit:m

📥 Download Datasheet

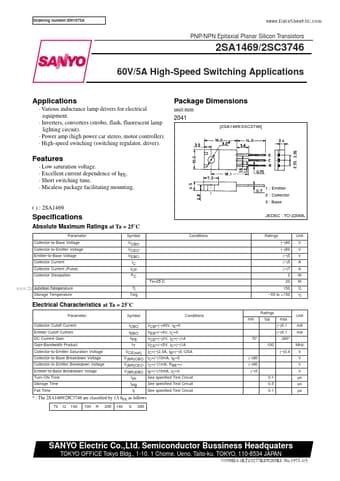

A1469 Datasheet Preview — Preview of A1469 PDF

Datasheet Details

Part number: A1469
Manufacturer: Sanyo Semiconductor Corporation
File Size: 130.47 KB
Datasheet: A1469_SanyoSemiconductorCorporation.pdf
Description: PNP/NPN Epitaxial Planar Silicon Transistors
