STK4028II AF Power Amplifier

STK4028II Description

Ordering number : EN4548A Thick Film Hybrid IC STK4028 II AF Power Amplifier (Split Power Supply) (30 W min, THD = 0.4 %) .

STK4028II Features

* Compact packaging supports slimmer set designs
* Series designed for 20 up to 200 W and pin- compatibility
* Simpler heat sink design facilitates thermal design of slim stereo sets
* The pulse noises associated with turning the power on and off have been reduced by

STK4028II Applications

* that require extremely high levels of reliability, such as life-support systems, aircraft’s control systems, or other applications whose failure can be reasonably expected to result in serious physical and/or material damage. Consult with your SANYO representative nearest you before using any SANYO

📥 Download Datasheet

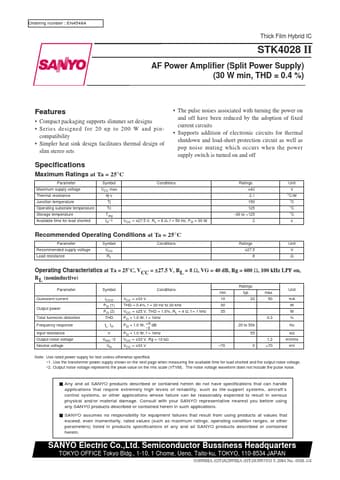

Preview of STK4028II PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK4028II
Manufacturer
Sanyo
File Size
159.20 KB
Datasheet
STK4028II-Sanyo.pdf
Description
AF Power Amplifier
