2SB980 Datasheet - SavantIC

2SB980 SILICON POWER TRANSISTOR

*With TO-3PN package *Wide area of safe operation *Large current capability APPLICATIONS *For audio frequency output applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol DESCRIPTION Absolute maximum ratings(Tc=.

2SB980_SavantIC.pdf

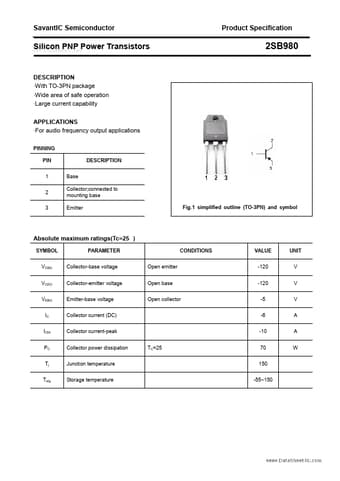

Preview of 2SB980 PDF
2SB980 Datasheet Preview Page 2 2SB980 Datasheet Preview Page 3

Datasheet Details

Part number:

2SB980

Manufacturer:

SavantIC

File Size:

169.19 KB

Description:

Silicon power transistor.
