2SB981 - PNP Transistor

2SB981 Description

isc Silicon PNP Power Transistor 2SB981 .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= -140V(Min). Good Linearity of hFE. Wide Area of Safe Operation. Minimum Lot-to-Lot v.

2SB981 Applications

* Designed for high power amplifications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -140 V VCEO Collector-Emitter Voltage -140 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -7 A ICP Collector Current-Pulse C

📥 Download Datasheet

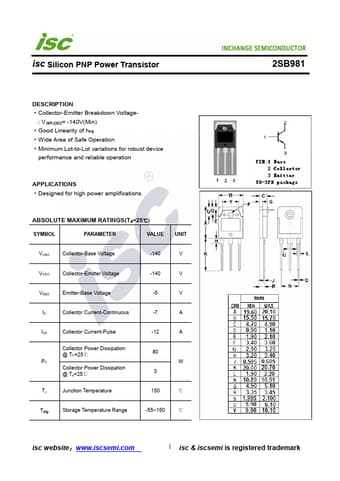

Preview of 2SB981 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SB981
Manufacturer
INCHANGE
File Size
215.71 KB
Datasheet
2SB981-INCHANGE.pdf
Description
PNP Transistor
