2SB988 - PNP Transistor

2SB988 Description

isc Silicon PNP Power Transistor .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= -60V(Min). Collector Power Dissipation- : PC= 30W@ TC= 25℃. Low Collector Saturation Vol.

2SB988 Applications

* Designed for general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -60 V VCEO Collector-Emitter Voltage -60 V VEBO Emitter-Base Voltage -7 V IC Collector Current-Continuous -3 A IB Base Current-Continuous C

📥 Download Datasheet

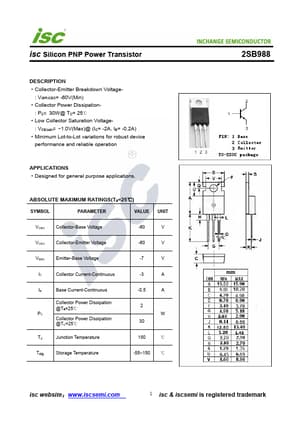

Preview of 2SB988 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SB988
Manufacturer
INCHANGE
File Size
211.35 KB
Datasheet
2SB988-INCHANGE.pdf
Description
PNP Transistor
