2SB989 - Silicon PNP Power Transistor

2SB989 Description

isc Silicon PNP Power Transistor .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= -80V(Min). Collector Power Dissipation- : PC= 30W@ TC= 25℃. Low Collector Saturation Vol.

2SB989 Applications

* Designed for general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -80 V VCEO Collector-Emitter Voltage -80 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -4 A IB Base Current-Continuous P

📥 Download Datasheet

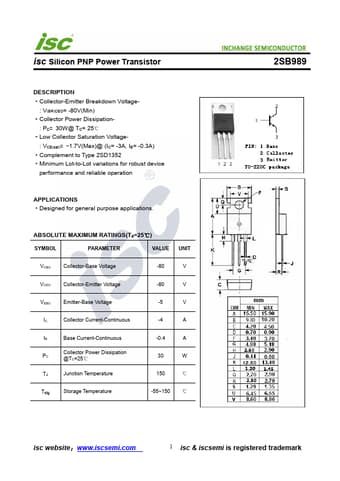

Preview of 2SB989 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SB989
Manufacturer
INCHANGE
File Size
216.13 KB
Datasheet
2SB989-INCHANGE.pdf
Description
Silicon PNP Power Transistor
