2SB982 - PNP Transistor

2SB982 Description

isc Silicon PNP Power Transistor 2SB982 .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= -150V(Min). Good Linearity of hFE. Wide Area of Safe Operation. Minimum Lot-to-Lot v.

2SB982 Applications

* Designed for high power amplifications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -150 V VCEO Collector-Emitter Voltage -150 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -9 A ICP Collector Current-Pulse C

📥 Download Datasheet

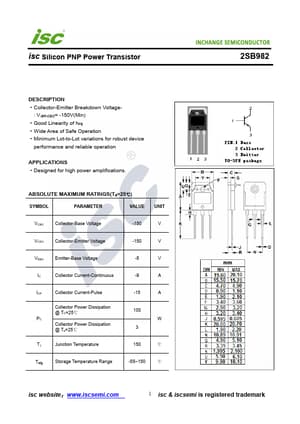

Preview of 2SB982 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SB982
Manufacturer
INCHANGE
File Size
215.88 KB
Datasheet
2SB982-INCHANGE.pdf
Description
PNP Transistor
