2SC3148 Datasheet, Transistor, SavantIC

PDF File Details

Part number:

2SC3148

Manufacturer:

SavantIC

File Size:

180.71kb

Download:

📄 Datasheet

Description:

Silicon power transistor.

  • With TO-220C package
  • High collector breakdown voltage: VCEO=800V(Min)
  • Excellent switching time: tr=1.0µs(M

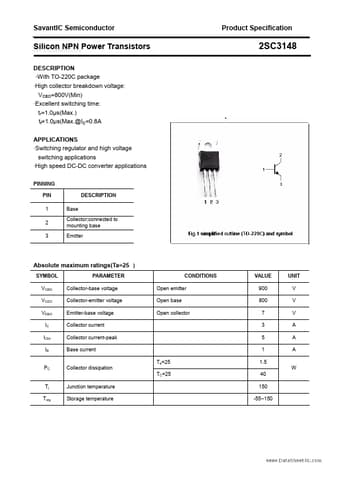

  • Datasheet Preview: 2SC3148 📥 Download PDF (180.71kb)
    Page 2 of 2SC3148 Page 3 of 2SC3148

    2SC3148 Application

    • Applications
    • Switching regulator and high voltage switching applications
    • High speed DC-DC converter applications PINNING PIN 1 2 3

    TAGS

    2SC3148
    SILICON
    POWER
    TRANSISTOR
    SavantIC
