2SC3151 Datasheet - SavantIC

2SC3151 SILICON POWER TRANSISTOR

*With TO-3PN package *High breakdown voltage (VCBO 900V) *Fast switching speed *Wide ASO Safe Operating Area APPLICATIONS *800V/1.5A Switching Regulator Applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3PN) and symbol D.

2SC3151 Datasheet (236.60 KB)

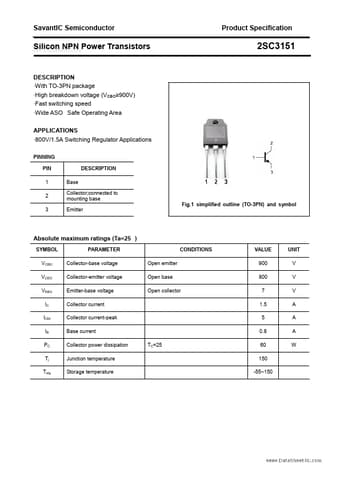

Preview of 2SC3151 PDF
2SC3151 Datasheet Preview Page 2 2SC3151 Datasheet Preview Page 3

Datasheet Details

Part number:

2SC3151

Manufacturer:

SavantIC

File Size:

236.60 KB

Description:

Silicon power transistor.
