2SC3117 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

Datasheet preview – 2SC3117

Datasheet Details

Part number 2SC3117
Manufacturer SavantIC
File Size 182.84 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SC3117 Datasheet
Additional preview pages of the 2SC3117 datasheet.

Product details

Description

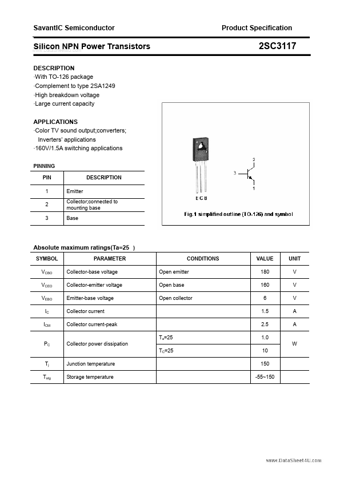

With TO-126 package Complement to type 2SA1249 High breakdown voltage Large current capacity APPLICATIONS Color TV sound output;converters; Inverters’ applications 160V/1.5A switching applications PINNING PIN 1 2 3 Emitter Collector;connected to mounting base Base DESCRIPTION 2SC3117 Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-peak
