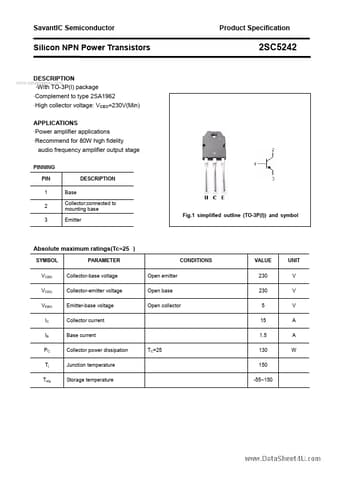

Description:

Silicon power transistor.

  • With TO-3P(I) package
  • Complement to type 2SA1962
  • High collector voltage: VCEO=230V(Min) APPLICATIONS
  • Datasheet Preview: 2SC5242 📥 Download PDF (203.31kb)
    Page 2 of 2SC5242 Page 3 of 2SC5242

    2SC5242 Application

    • Applications
    • Power amplifier applications
    • Recommend for 80W high fidelity audio frequency amplifier output stage PINNING PIN 1 2 3
