2SD1163 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

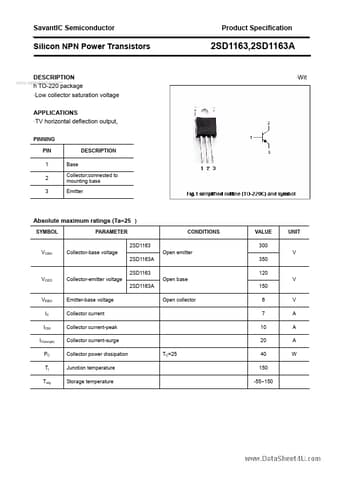

Datasheet preview – 2SD1163

Datasheet Details

Part number 2SD1163
Manufacturer SavantIC
File Size 125.43 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SD1163 Datasheet
Additional preview pages of the 2SD1163 datasheet.

Product details

Description

h TO-220 package Low collector saturation voltage APPLICATIONS TV horizontal deflection output, PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL PARAMETER 2SD1163 VCBO Collector-base voltage 2SD1163A 2SD1163 VCEO Collector-emitter voltage 2SD1163A VEBO IC ICM IC(surge) PC Tj Tstg Emitter-base voltage Collector current Collector current-peak Collector current-surge Collector power dissipation Junction temperature S
