2SD1163A NPN TRANSISTOR

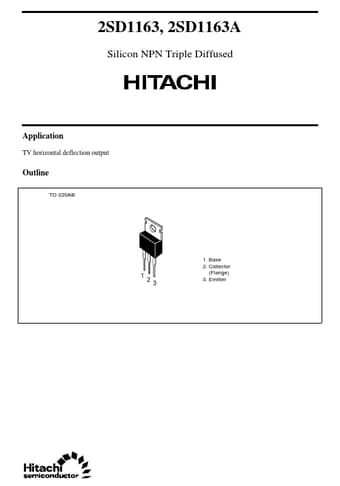

2SD1163, 2SD1163A Silicon NPN Triple Diffused Application TV horizontal deflection output Outline TO-220AB 1 2 3 1. Base 2. Collector (Flange) 3. Emitter 2SD1163, 2SD1163A Absolute Maximum Ratings (Ta = 25°C) Rating Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector surge current Collector power dissipation Junction temperature Storage temperature Note: 1. Value at TC = 25°C. Symbol VCBO VCEO VEBO IC I C (p.
