2SD1166 - NPN Transistor

2SD1166 Description

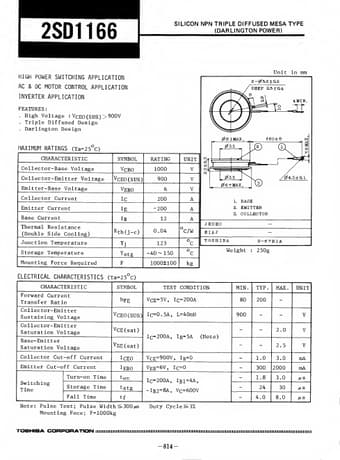

: SILICON NPN TRIPLE DIFFUSED MESA TYPE (DARLINGTON POWER) HIGH POWER SWITCHING APPLICATION AC & DC MOTOR CONTROL APPLICATION INVERTER APPLICATION FE.

2SD1166 Features

* . High Voltage : VCE0 (SUS) >900V . Triple Diffused Design . Darlington Design Unit in mm 2-0&2±U2 MAXIMUM RATINGS (Ta=25°C) CHARACTERISTIC Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Emitter Current Base Current Thermal Resistance (Double Side Cooling)
