2SD1163
Hitachi Semiconductor
32.38 KB
Npn transistor.

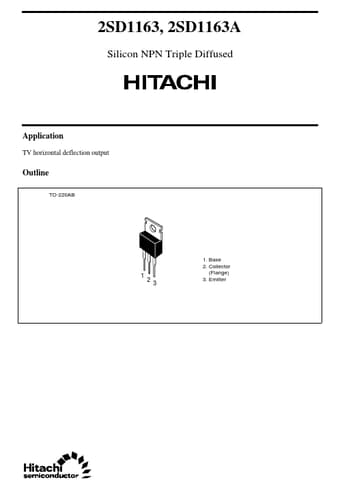

2SD1163, 2SD1163A
Silicon NPN Triple Diffused
Application
TV horizontal deflection output
Outline
TO-220AB
1
2 3
1. Base 2. Collector (Flange) 3..
