2SD1763 - SILICON POWER TRANSISTOR

Product Overview

📥 Download Datasheet

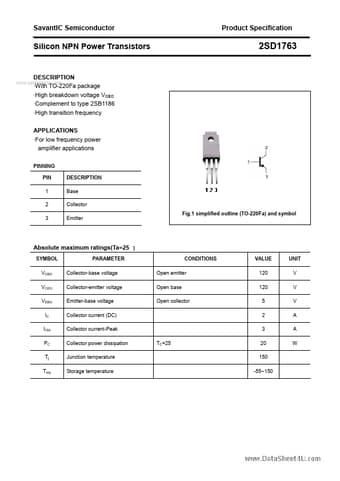

Datasheet preview – 2SD1763

Datasheet Details

Part number 2SD1763
Manufacturer SavantIC
File Size 138.25 KB
Description SILICON POWER TRANSISTOR
Datasheet download datasheet 2SD1763 Datasheet
Additional preview pages of the 2SD1763 datasheet.

Product details

Description

With TO-220Fa package High breakdown voltage VCEO Complement to type 2SB1186 High transition frequency APPLICATIONS For low frequency power amplifier applications PINNING PIN 1 2 3 DESCRIPTION Base Collector Emitter Fig.1 simplified outline (TO-220Fa) and symbol Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC ICM PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Collector current-Peak Collector po
