S5ULM2576

Simple Switcher 3A Step-Down Voltage Regulator

SeCoS

S5ULM2576 Features

* High Efficiency Min. 4.40 0.66 0.00 0.36 2.29 9.80 Millimeter REF. Max. 4.80 c2 0.91 L2 0.30 B D 0.5 e 2.79 L 10.4 Min. Max. 1.25 1.45 1.27 REF. 8.6 9.0 1.70 REF. 14.6 15.8 0˚ 8˚ Millimeter

* Wide Input Voltage Range

* 52KHz Fixed Frequency Oscillator

* 3.3V,5V,12V,15V and Ad

S5ULM2576 General Description

The S5ULM2576 series of regulators are monolithic integrated circuits that provide all active functions for a step-down (buck) switching regulator, capable of driving 3A load with excellent line and load regulation. These devices are available in fixed output voltage of 3.3V,5V,12V,15V and an adjust.

S5ULM2576 Datasheet (1.01 MB)

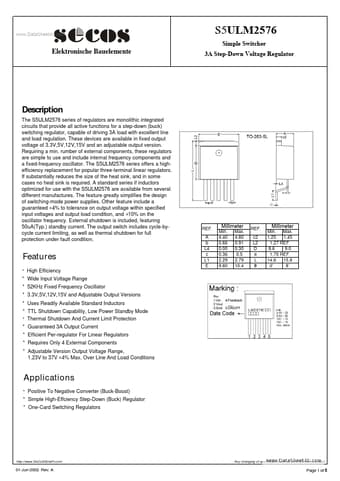

S5ULM2576 Datasheet Preview — Preview of S5ULM2576 PDF

Datasheet Details

Part number:

S5ULM2576

Manufacturer:

SeCoS

File Size:

1.01 MB

Description:

Simple switcher 3a step-down voltage regulator.
